Locking Drawbar Assembly with Washers & Grease.
Product Overview
The DRB-0090-KIT (Locking Drawbar Assembly with Washers & Grease) is a comprehensive replacement kit designed specifically for Fadal CNC Machines.
As a genuine OEM replacement part, this kit ensures compatibility and high-quality performance, keeping your CNC machines running smoothly and efficiently.
At ITSCNC, we are committed to providing top-notch products that meet the stringent standards of the CNC machining industry.
Usage of DRB-0090-KIT
The Locking Drawbar Assembly with Washers & Grease is designed for the replacement and maintenance of the drawbar assembly in Fadal CNC Machines.
The drawbar assembly plays a crucial role in securing the tool holder in the spindle during machining operations. Proper maintenance and timely replacement of these components are essential to maintain the precision and reliability of your CNC machine.
This kit provides all the necessary parts to ensure the drawbar assembly functions correctly and efficiently.

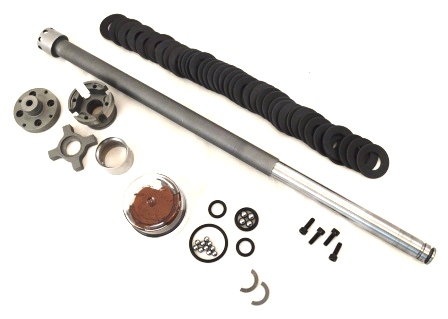

Included Parts In Kit
This comprehensive kit includes all the essential components needed for a complete drawbar assembly replacement:
- DRB-0090 - Locking Drawbar Assembly
- HDW-0195 - Set of 47 Bellville Washers with Grease
- DRB-0019 - Set of 2 Retainers
- BRG-0004 - Set of 4, 1/4" Chrome Balls
- BRG-0005 - Set of 10, 3/16" Chrome Balls
- HDW-0307 - Set of 4, Hex Screws (8/32" x 1/2")
- HDW-0155 - O-Ring (#114)
- HDW-0158 - O-Ring (#122)
- HDW-0177 - O-Ring (#111)
These components are meticulously designed and manufactured to meet the exact specifications required for optimal performance in Fadal CNC Machines.
Functionality in CNC Machines
In CNC machines, the drawbar assembly is a critical component that ensures the tool holder remains securely fastened during machining operations.
The DRB-0090-KIT facilitates the proper functioning of the drawbar by providing all necessary components to replace worn or damaged parts. The washers ensure consistent pressure is applied, while the chrome balls and retainers maintain the alignment and stability of the drawbar.
This kit ensures that the drawbar assembly operates smoothly, enhancing the overall performance and precision of your CNC machine.
Warranty Information
When you purchase the DRB-0090-KIT from our website, you can be assured of its quality and reliability.
This product comes with a 90-day warranty, covering any defects in material or workmanship. This warranty provides you with peace of mind, knowing that you are receiving a high-quality product that meets your expectations.
Important Note: If you face any issues with this replacement product within the warranty period, please give us a call. We would be happy to assist you with the warranty claim process and ensure your satisfaction.
ITSCNC Support Services
At ITSCNC, we are dedicated to providing exceptional customer support. If you have any questions or concerns about the DRB-0090-KIT, a Fadal Locking Drawbar Assembly Kit,, our knowledgeable team is here to help.
We understand the importance of compatibility and proper installation, and we are ready to guide you in purchasing the right product for your specific Fadal CNC Machine. Feel free to reach out to us for personalized support and expert advice.
Why Choose ITSCNC For Fadal Drawbar and Spindle Parts?
With years of experience in the CNC machining industry, ITSCNC has established itself as a trusted source for Fadal replacement parts. Our extensive knowledge and expertise allow us to understand the unique needs of CNC machine operators and provide solutions that meet those needs.
When you choose ITSCNC, you can be confident that you are receiving high-quality, reliable products that are designed to enhance the performance and longevity of your CNC machines.
Years of Experience
Our extensive experience in the CNC machining industry sets us apart as a leading provider of replacement parts.
Over the years, we have built a reputation for excellence by consistently delivering products that meet the highest standards of quality and performance.
Our deep understanding of CNC machines and their components enables us to offer expert advice and support to our customers, ensuring that they receive the best possible solutions for their machining needs.
Fadal Drawbar Assembly Parts - Always Available
At ITSCNC, we pride ourselves on our ability to provide a wide range of genuine Fadal replacement parts, ensuring that our customers can always find the components they need to keep their machines running smoothly.
Our comprehensive inventory includes everything from drawbar assemblies and washers to chrome balls and O-rings, all of which are readily available for immediate purchase. By maintaining a consistent stock of high-quality parts, we help our customers minimize downtime and maintain the efficiency of their CNC machines.
The DRB-0090-KIT Locking Drawbar Assembly with Washers and Grease is a crucial replacement kit for Fadal CNC Machines, ensuring reliability and optimal performance.
Trust ITSCNC for all your Fadal replacement part needs and benefit from our expertise and commitment to customer satisfaction.
| Warranty | 90 Day Warranty |
|---|---|
| Repair Price | No |
