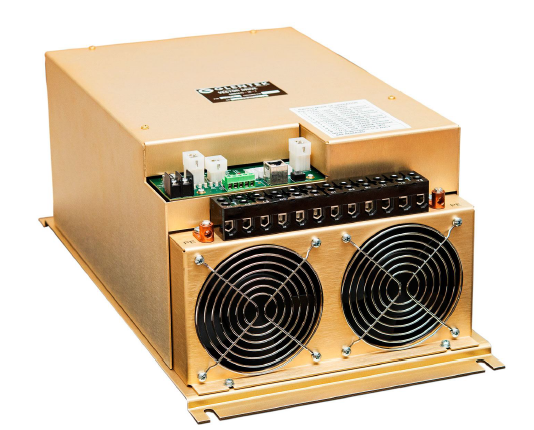

Glentek Universal Spindle Drive, 5hp-20hp

Part number: INV-0098G
Ships Today by 4pm PST
In stock
SKU
INV-0098G
$3,125.00
Out of Stock

Glentek Universal Spindle Drive

Overview

This Glentek Spindle Inverter is a Universal Drive and Fadal Replacement Spindle Drive that can be used in all Fadal CNC Machines. Its drive is specifically designed to improve the performance of standard three-phase induction motors and CNC Machines, offering 5hp-20hp.

This Glentek Universal Spindle Drive works by utilizing flux vector technology and a Digital Signal Processor (DSP). This spindle drive creates a precise torque feedback loop for the motor. As a result, the motor exhibits servo motor-like performance, offering precise speed control from zero to base speed and beyond. Through continuous calculations of flux and torque vectors, the drive maintains a constant 90-degree phase difference between them, enabling efficient torque control. This control spans from standstill to full speed without excessive current draw.

The drive can operate in sensorless mode, eliminating the need for external feedback. This mode can be used in inverter mode or VFD (Variable Frequency Drive) mode, further optimizing the motor's efficiency. The Glentek is equipped with advanced mathematical algorithms and state-of-the-art DSP technology, ensuring a smooth and steady starting torque. The applied frequency and voltage are gradually increased in a controlled manner, allowing the motor to accelerate the load efficiently.

With this spindle drive, businesses can achieve enhanced motor performance, greater energy efficiency, and precise speed control for a wide range of applications.

Easy Parameter Selection - The spindle drive lets you choose from preset settings easily with a switch. No complicated programming and setting up is needed, automatically saving time and effort.

Simple Operation - As we said earlier, you can use the spindle drive without any programming. Just plug it in and start using it right away. It's straightforward and suitable for everyone, whether you're experienced or new to this technology.

Intended Application

The Glentek Universal Spindle Drive spindle drive (Part number: INV-0098G) is designed to be a drop-in replacement for Fadal Engineering VMC's spindle drives. You can easily install it without any modifications.

Note: For more information, please refer to section 1.3 for the available configurations and compatible part numbers. And for the installation process, please proceed to section 2 of the manual.

Modes

Switch Mode Of Operation

Position

File Number

Comment

0

7700

15HP, 10K RPM, Sensored

1

7701

15HP, 7.5K RPM, Sensored

2

7702

15HP, 10K RPM, VFD (Variable Frequency Drive)

3

7703

10HP, 10K RPM, Sensored

4

7704

10HP, 7.5K RPM, Sensored

5

7705

10HP, 10K RPM, VFD (Variable Frequency Drive)

6

7707

20HP, 10K RPM, Sensored

7

7708

20HP, 7.5K RPM, Sensored

8

7709

20HP, 10K RPM, VFD (Variable Frequency Drive)

9

7710

5HP, 10K RPM, Sensored

A

7711

5HP, 7.5K RPM, Sensored

B

7712

5HP, 10K RPM, VFD (Variable Frequency Drive)



Note: Positions C, D, E, and F are reserved for future configurations.



Here's the label on the Spindle Drive.

Select the Drives Parameters with the turn of a switch.


GLENTEK INVERTER LABEL

No programming is required.

See the installation instructions below.
Glentek New Syle Spindle Drive Manual
