Fadal Style Resolver Assembly

Product Overview

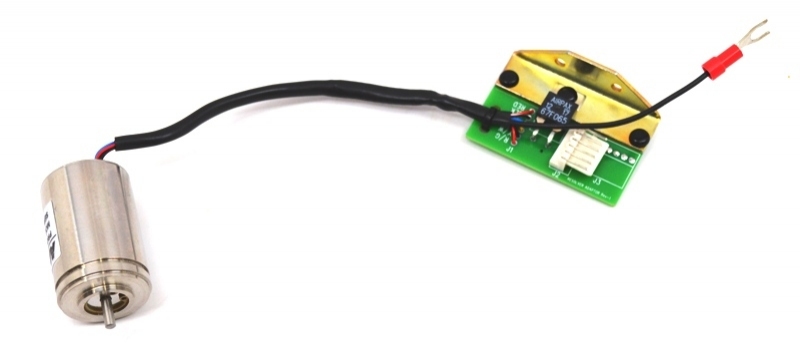

The ENC-0008 is a Fadal Style Resolver Assembly, specifically designed for use in Fadal CNC Machines. This resolver assembly ensures precise positioning and control, contributing to the high performance and reliability of your CNC machinery. It is an essential component for maintaining the accuracy and efficiency of your Fadal CNC operations.

Usage of ENC-0008

The ENC-0008 is used to provide accurate position feedback for the Glentek motors in your CNC machine. By converting mechanical position information into electrical signals, it ensures that the CNC controller can precisely adjust and monitor motor positions. This resolver assembly is critical for applications requiring high precision and reliability.

Functionality in CNC Machines

In CNC machines, the resolver assembly plays a crucial role in the feedback loop for motor control. The ENC-0008 resolver assembly ensures that the CNC controller receives accurate position data, enabling precise control of the machine's movements. This component helps maintain the accuracy of operations, ensuring that each movement is executed with the highest precision. The resolver's accurate feedback is essential for tasks such as milling, drilling, and cutting, where even minor deviations can impact the final product's quality.

Compatibility of Fadal Style Resolver Assembly

The ENC-0008, which is a Fadal Style Resolver Assembly, is compatible with the following Glentek motors:

• MTR-0002
• MTR-0003
• MTR-0010
• MTR-0125

If you are unsure whether this resolver assembly will work with your specific Fadal CNC machine, please contact us. Our team of experts will assist you in confirming compatibility and selecting the appropriate replacement part for your machine.

Warranty Information

When purchased from ITSCNC, the ENC-0008 Fadal Style Resolver Assembly comes with a 90-day warranty. This warranty covers any manufacturing defects or operational issues that may arise within this period. Should you encounter any problems with the resolver assembly during the warranty period, our support team will guide you through the warranty claim process to ensure a swift resolution.

ITSCNC Support Services

At ITSCNC, customer satisfaction is our top priority. Our dedicated support team is always available to address any questions or concerns regarding the ENC-0008 or any other products listed on our website. Whether you need assistance with compatibility, installation, or troubleshooting, our knowledgeable team provides the guidance and support necessary to keep your CNC machines running smoothly. We are committed to delivering the highest level of support and service, ensuring your operational efficiency and success.

Why Choose ITSCNC For Fadal Encoders, Resolvers & Tach?

Choosing ITSCNC for your replacement parts means opting for reliability, precision, and excellence. We offer genuine OEM replacement parts that guarantee your Fadal CNC Machines operate at their best. With extensive industry experience, we understand the needs of CNC operators and strive to meet those needs with high-quality parts and exceptional service. Our commitment to maintaining the highest standards in product quality and customer support sets us apart in the industry. Trust ITSCNC to provide the parts you need, backed by unparalleled expertise and customer care.

Years of Experience

With decades of experience in providing replacement parts for CNC machines, ITSCNC has established itself as a trusted partner in the industry. Our long-standing relationship with Fadal Engineering and deep understanding of CNC operations enable us to deliver products that enhance machine performance and reliability. Trust in our expertise to keep your machines running efficiently and effectively. Our history and expertise give us the unique ability to anticipate and meet the evolving needs of our customers.

Fadal Encoders, Resolvers & Tach - Always Available

We maintain a comprehensive inventory of Fadal replacement parts, including the ENC-0008. Our commitment to availability ensures that you can find the parts you need, when you need them, minimizing downtime and maximizing productivity. Our robust inventory management practices guarantee that critical components are always in stock and ready for immediate shipment, allowing you to keep your operations running smoothly without interruption.

Contact Us for Fadal Resolvers

For any questions or queries regarding the ENC-0008 or other replacement parts for Fadal CNC Machines featured on our website, please contact our order desk. Our dedicated team is eager to assist you with comprehensive information and support to facilitate informed purchasing decisions. Your satisfaction and the smooth operation of your CNC machines are our top priorities. We are here to ensure that you have all the information you need to make the best choice for your CNC operations. Reach out to us via email or call, and one of our customer care representatives will promptly assist you.

Resolver Testing Guide

Testing a resolver involves using a voltmeter to measure the resistance of its coils. A resolver typically consists of three coils: two excitation coils and one reference coil connected to the axis controller card.

Interface Connector and Coil Connections

The interface connector links to the resolver's coils. Follow these steps to determine if the resolver is faulty:

Step 1: Check Resistance

AMCI Resolver:

• Pair A: 35 to 45 Ohms
• Pair B: 125 to 135 Ohms
• Pair C: 125 to 135 Ohms

Note: Pair B and Pair C will have the same values; the exact value may vary depending on the manufacturer.

Harowe Resolver:

• Pair A: 70 to 80 Ohms
• Pair B: 190 to 220 Ohms
• Pair C: 190 to 220 Ohms

Note: Pair B and Pair C will have the same values; the exact value may vary depending on the manufacturer.

Step 2: Check for Coil-to-Coil Shorts

Measure the resistance between all other pin combinations besides the three pairs. All other combinations should result in an open circuit.

Step 3: Check for Shorts to Ground

Measure the resistance from each pin to the resolver frame (case). There should be no shorts to the resolver frame.

Step 4: Check the Voltage When Connected

• Pair A: 1.7 VDC
• Pair B and Pair C: 3.5 VDC
• Pair A connects directly to the 1010 axis card via the J2 bottom bullet connector.

By following these steps, you can effectively determine whether a resolver is functioning correctly or needs replacement. Proper testing ensures that your CNC machine's resolver is in good working condition, maintaining optimal performance and reliability.
