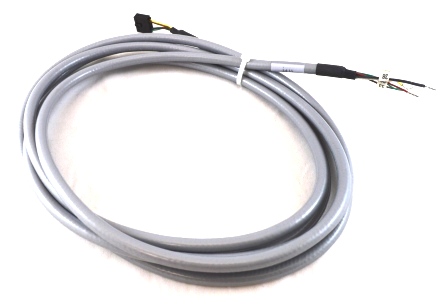

Wire Harness, Rigid Tap, 11ft

Part number: WIR-0160
In stock
SKU
WIR-0160
$95.00
Out of Stock

Product Overview

The WIR-0160, also known as the Rigid Tap wire harness, is an essential component in Fadal CNC machines. Its job is to connect the spindle drive encoder output channels to the CNC controller, enabling precise control over the spindle operation.

Usage of WIR-0160

The Wire Harness, Rigid Tap, 11ft is used specifically for rigid tapping operations in Fadal CNC machines. It ensures smooth communication between the spindle drive encoder and the CNC controller, allowing for accurate tapping processes.

Length

The WIR-0160 cable is 11 feet long.

Functionality in CNC Machines

In CNC machines, the Fadal Wire Harness Rigid Tap 11FT facilitates rigid tapping by connecting the spindle drive encoder to the CNC controller. This enables the CNC system to accurately control the spindle rotation during tapping operations, ensuring precise thread creation in the workpiece.

How Does It Work?

The WIR-0160 is a cable that links the spindle drive encoder output to the CNC controller. It has labeled leads to connect to the spindle drive. It connects the spindle drive encoder output channels to the CNC controller, enabling precise control over the spindle operation.

At the control, it plugs into the 1010-4, 1010-5, or 1010-6 Spindle card. This card's input port is located at the bottom (J4), which is a 10-pin connector. For the Rigid Tap to work, the Fadal control system needs the right software Eproms for the 1400 CPU and the 1010 spindle card.

In order to check if the Eproms are correct, you can use the command G84.2 in MDI, which makes the spindle turn three times, stops, and holds its position. In case the spindle does not work as expected, it means or it indicates incorrect spindle drive or Eproms.

Warranty Information

When purchased from our website, the WIR-0160 wire harness comes with a 90-day warranty. This warranty covers any defects in materials or workmanship, providing customers with peace of mind regarding the reliability and performance of the product.

ITSCNC Support Services

At ITSCNC, we provide comprehensive support for all our products, including the WIR-0160 wire harness. Our dedicated support team is available to assist customers with installation, troubleshooting, and any inquiries related to the functionality or usage of the harness. We are committed to ensuring our customers have a seamless experience with our products.

Why Choose ITSCNC For Fadal Cables & Wire Harnesses

ITSCNC is the preferred choice for replacement parts for Fadal CNC machines due to our commitment to quality, reliability, and customer service. With years of experience in the industry, we have established ourselves as a trusted source for CNC machine components.

Our extensive inventory and efficient shipping processes ensure that customers receive the parts they need, when they need them, to minimize downtime and maximize productivity.

Years of Experience

With years of experience in the CNC machine industry, ITSCNC has the expertise to provide reliable solutions for our customers' needs. Our team has a deep understanding of Fadal CNC machines and their components, allowing us to offer tailored recommendations and support to our customers.

Fadal Replacement Parts - Always Available

At ITSCNC, we understand the importance of uptime for our customers' CNC machines. That's why we ensure a continuous supply of Fadal replacement parts, including the WIR-0160 wire harness, to keep our customers' machines running smoothly.

With our extensive inventory and efficient shipping processes, customers can rely on us to provide the parts they need, when they need them, ensuring uninterrupted operation of their CNC equipment.

If you have any questions or queries regarding the WIR-0160, just give us a call. We would love to answer them!

More Information
Warranty90 Day Warranty
Repair PriceNo
