Raptor Valve Kit, Drawbar Cylinder, Upgrade

Part number: VLV-0075
In stock
Out of Stock

Product Overview

The Raptor Valve Kit, Drawbar Cylinder Upgrade (VLV-0075) is designed to enhance the performance of CNC machines by addressing tool out sticking issues.

This kit includes various components such as the valve assembly (VLV-0069), fittings, and tubing, along with installation instructions. With a focus on improving tool out action, the Raptor Valve Kit offers a practical solution to optimize machining operations.

Usage of VLV-0075

The Raptor Valve Kit, Drawbar Cylinder, Upgrade is specifically designed for installation in CNC machines to improve the functionality of the drawbar cylinder. By increasing the air supply to the tool in/out cylinder, this kit aims to minimize tool out sticking problems and enhance the overall efficiency of the machining process.

Functionality in CNC Machines

When installed in CNC machines, the Raptor Valve Kit ensures smoother tool in/out operations by providing a more consistent and responsive airflow to the drawbar cylinder. This results in improved performance, reduced downtime, and enhanced productivity during machining operations.

Assembly Kit Items

This assembly comes with the following items:

  • VLV-0069 - Valve Assembly
  • PLM-0236 - Fitting, 3/8 QD x 3/8 MIPT
  • PLM-0050 - Fitting QD x QD WYE
  • PLM-0023 - Nylon Tubing, 1/4"
  • PLM-0024 - Nylon Tubing, 3/8"
  • PLM-0088 - Fitting, 3/8 QD x 1/4 MIPT

This kit also comes with detailed Installation Instructions. If you don’t get one, give us a call, we will send you one.

Warranty Information

When purchased from our website, the Fadal Raptor Valve Kit, Drawbar Cylinder, Upgrade (VLV-0075) comes with a 90-day warranty, ensuring peace of mind and protection against any manufacturing defects or malfunctions.

More Information
Warranty90 Day Warranty
Repair PriceNo
See installation Instructions.

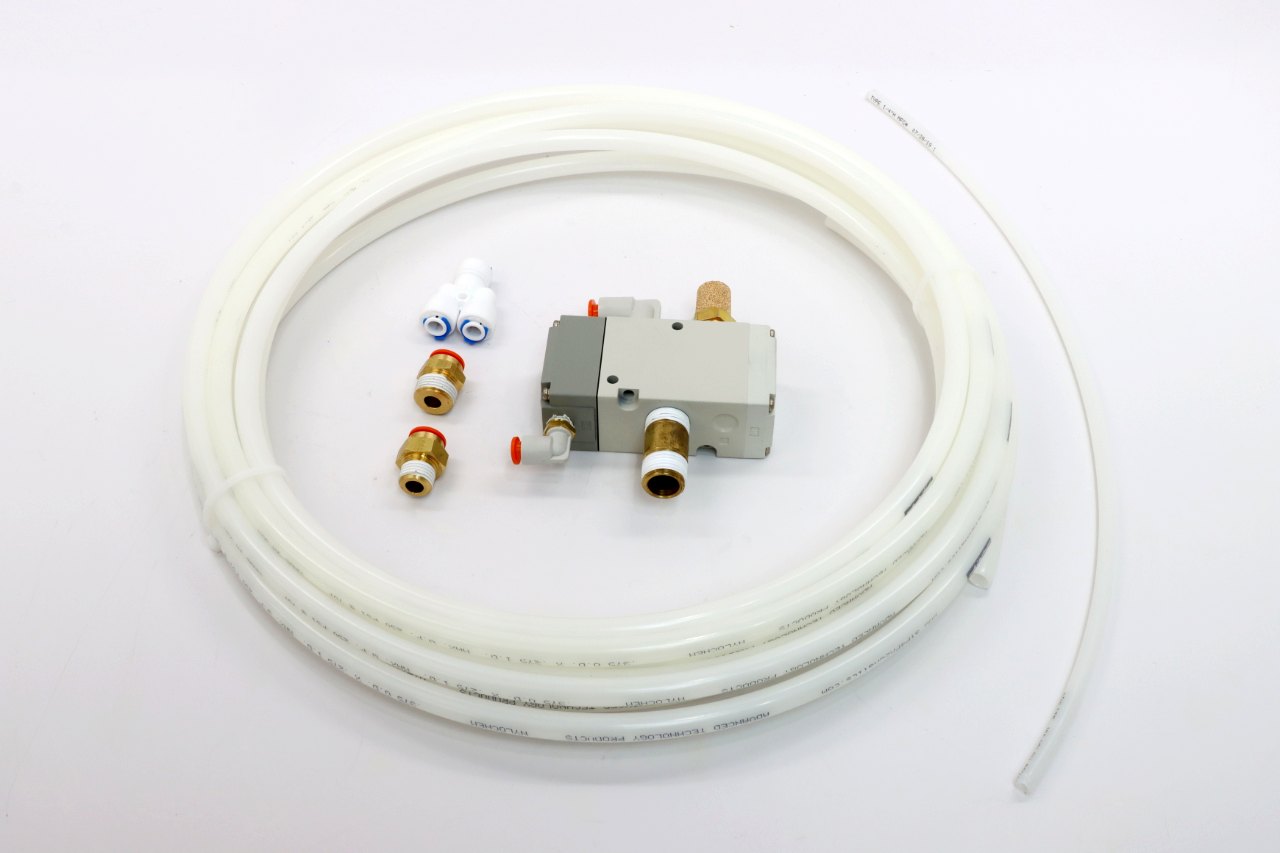

Our Fadal Drawbar Cylinder, Raptor Valve Kit includes the following parts.

Item Number      Part NumberDescriptionQty
1VLV-0069Valve Assembly1
2PLM-0236Fitting, 3/8 QD x 3/8 MIPT1
3PLM-0050Fitting QD x QD WYE1
4PLM-0023Nylon Tubing, 1/4"1'
5PLM-0024Nylon Tubing, 3/8"25'
6PLM-0088Fitting, 3/8 QD x 1/4 MIPT1
