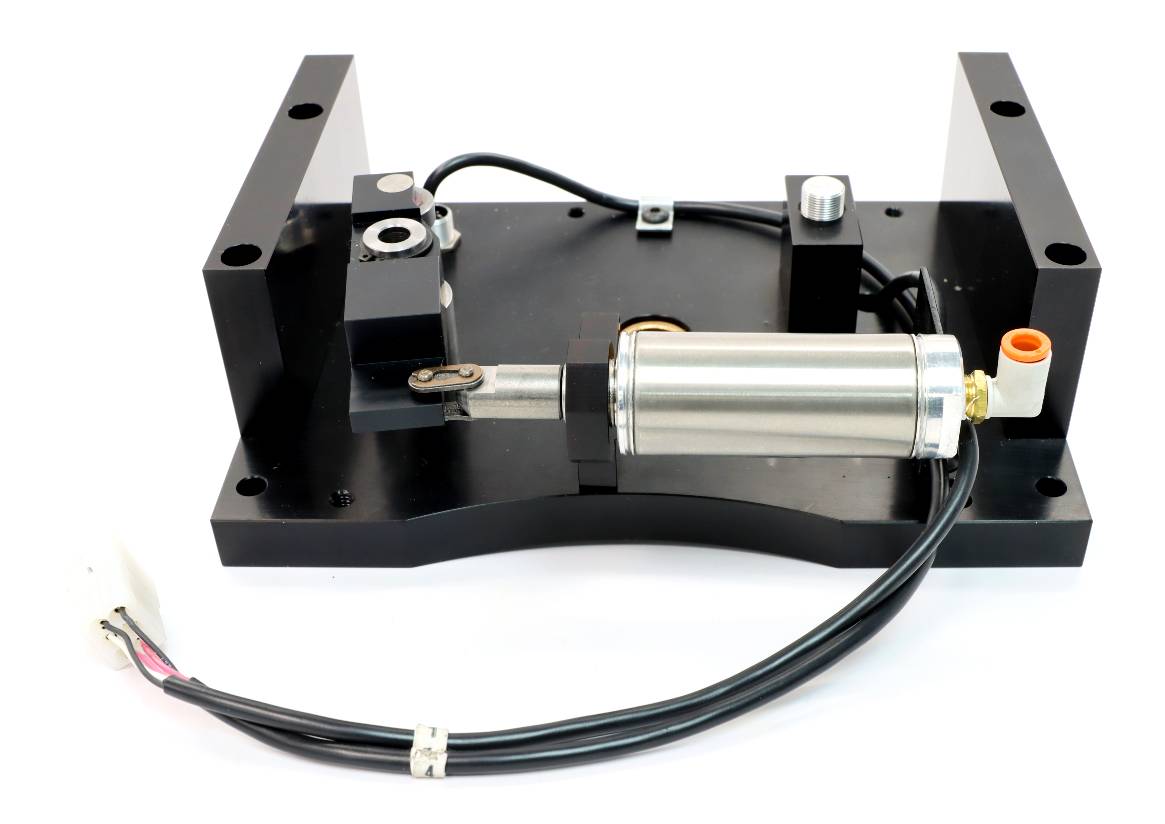

ORIENT BRIDGE ASY;LDB 10K;NON CLNT-THRU

Product Overview

Fadal Orient Bridge Asy; LDB 10K; NON CLNT-THRU is a key replacement part designed specifically for Fadal CNC machines. It ensures precise spindle orientation, crucial for accurate tool changes and maintaining operational efficiency. Built with a load-bearing (LDB) design, it supports spindles running at 10,000 RPM, enhancing both stability and performance.

ORB-0001 is engineered for machines operating with 10K spindles and does not require coolant-through capabilities. This makes it suitable for Fadal machines in environments where spindle cooling or lubrication via coolant flow is not needed. It ensures high precision in machine operations, particularly in tool changes, which are fundamental to machining accuracy.

Usage of ORB-0001

This orientation bridge assembly controls the spindle’s angular alignment, ensuring it stops at the correct position before tool changes. By maintaining precise spindle positioning, the ORB-0001 prevents tool misalignment and helps avoid errors that could lead to operational inefficiencies. It’s an essential part of the CNC process, where exact positioning is key to achieving high-quality results.

Functionality in CNC Machines

The ORB-0001 is responsible for aligning the spindle at the right angle, allowing for smooth tool changes. The load-bearing (LDB) feature provides additional support, reducing wear and tear on the spindle, even during prolonged, high-speed operations. This results in increased machine longevity and reduced downtime, as the system works efficiently under heavy workloads.

Compatibility

Designed for Fadal CNC machines with 10,000 RPM spindles, the Orient Bridge Asy; LDB 10K; NON CLNT-THRU is ideal for models that do not utilize coolant-through spindles. It integrates seamlessly into compatible machines, providing a direct and easy replacement without the need for additional modifications.

Warranty Information – 90 Days

ORB-0001 Orientation Bridge Assembly comes with a 90-day warranty covering manufacturing defects. If any issues arise during this period, our team is here to assist with the warranty claim process, ensuring your CNC machine continues to run smoothly with minimal disruptions.

ITSCNC Support Services

ITSCNC is dedicated to providing excellent customer support. Whether you need help with installation, technical questions, or guidance on maximizing the performance of your machine, our team is available to assist. You can contact us via phone or email, and we’ll ensure quick and reliable service.

Why Choose ITSCNC For Replacement Fadal Orientation Parts

When you choose ITSCNC, you’re getting high-quality parts that meet or exceed OEM standards. Our focus on reliability ensures that every product, including the ORB-0001, is rigorously tested to provide long-lasting performance in your Fadal machine.

Years of Experience

With over 20 years of experience in CNC parts and services, ITSCNC is a trusted name in the industry. Our expertise with Fadal machines ensures that you receive not only the right part but also professional advice tailored to your specific machine requirements.

Fadal Orientation Bridge Assembly – Always Available

We maintain a comprehensive stock of Fadal replacement parts, including the ORB-0001 Orientation Bridge Assembly, so you never have to wait long to get the part you need. Our efficient inventory management helps reduce lead times, ensuring quick delivery and minimized machine downtime.

Contact Us For Fadal Parts

For additional information about the Fadal Orientation Bridge Assembly or other replacement parts, feel free to reach out to our team. We are happy to assist with technical inquiries or product selection to ensure you get the right part for your machine. Contact us via phone, email, or through our website for prompt support.
