Glentek AC Amplifier, TRM, Z-Axis

Part number: AMP-0093
Out of stock OR Call for price
SKU
AMP-0093
$1,750.00
Out of Stock

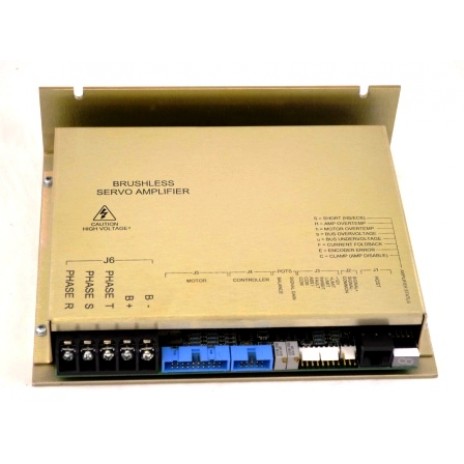

Glentek AC Amplifier, AMP-0093 for TRM, Z-Asix

About Fadal Amplifiers:

Axis amplifiers are electronic devices or circuits used to increase the magnitude of the signal applied to their input.

The AMP-0093, 8192 Line AC Ampifier is used with Glentek or Baldor Tool Room Mill Motors.

We recommend you buy the Glentek AMP-0093 for use on Z-Axis Tool Room Mill.

For more information see our Amplifier Repair Services. Note: Glentek part#'s AMP-0029, AMP-0040, AMP-0041, AMP-0054, AMP-0065, AMP-0093, AMP-0006 and AMP-0021 are accepted.

Cores must be repairable in order to receive a refund. AMC brand amps are not accepted.

Things to know about Fadal Machine Amplifiers

Axis amplifiers are electronic devices or circuits used to increase the magnitude of the signal applied to their input.

Fadal first designed their 5000 & 8192 -line count amplifier with the help of Glentek. Later they also partnered with Advanced Motion Control (AMC) to develop different types of Amplifiers. These brands continually upgrade their products with the latest technologies, and they feature fault indicating LED lighting and users can easily interpret the LED indicators on the front of the amp with Fadal maintenance manual.

General Safeguards and Amplifier Adjustment

Each of the Fadal amplifiers comes with an instruction manual containing the safety instructions to avoid any kind of malfunctioning or personal injuries. The first step of any Fadal parts installation is to cut off the electricity supply; one must disconnect all power to the machine before adding any component. It is highly recommended that a qualified technician is used for  safe installation or servicing.

All brushless Fadal amplifiers are adjusted prior to shipping and may only need minor adjustments. There are three pots that will need to be adjusted, such as the compensation pot, signal gain pot, and balance pot. The goal of this adjustment is to dynamically balance the amp with all the XYZAB axes for proper functioning.

Feature and Benefits

Fadal’s Glentek AC brushless amplifiers are featured with 5000  and 8192 Line Encoder. These are designed in a linear way and rotate in 10 amps continuous and 20 amps peak.  Frey are designed to drive a 6-pole motor with a 5000-line encoder.

New Fadal CNC Machine Amplifiers are designed to produce better current output conditions in three stages: continuous, peak, and fold back modes. Instead of just shutting down the amplifier after a 3-second peak current output, this new Fadal amplifier automatically folds back to continuous motor output. Like others, amplifiers of Fadal, not just lighting an LED to indicate a FAULT mode, but designed to provide better functionality to help with diagnostics:

  1. The FAULT LED lights up when the machine amplifier exceeds the continuous duty cycle to indicate starting as for the first 3 seconds it uses 200% peak current output. After 3 seconds, it folds back to the 100% continuous output rating.

The LED light goes OFF as the continuous rating of the amplifier and the 3 second Peak output capability is restored.

  1. The Fault signal goes LOW only when the amplifier is actually malfunctioning or the motor and/or wires are disconnected or shorted.

These new models of Fadal amplifier are covered with a protective  cover to protect the Fadal amplifier from handling and shield it from stray chips that can end up in the electrical cabinet.

More Information
WarrantyNew 1 Year Warranty.
Repair PriceNo
New 1 Year Warranty.
